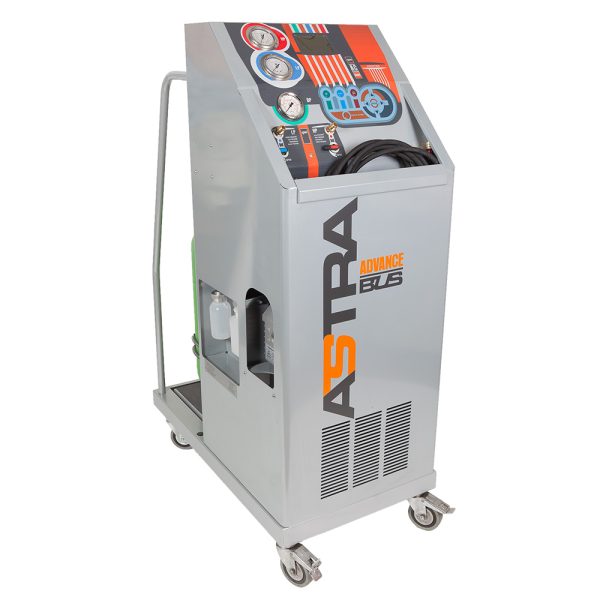

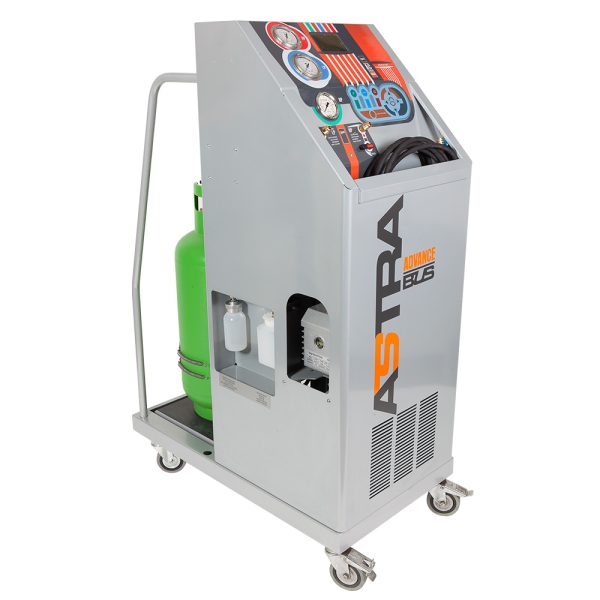

ASTRABUS Advance

Fully automatic A/C station, available for R134a or MULTIGAS gas,
for cars, trucks, agricultural and earthmoving machinery,
minibuses and coaches, train coaches and mobile refrigeration*.

Details that make a difference

High work output: 260 l/min vacuum pump and 1000 g/min compressor

Large recovery capacity thanks to 40 kg tank

Oil injection/additive, standard with solenoid valve

Automatic station flushing at every oil change

Also suitable for large buses (e.g. double-decker buses)

The MULTIGAS version can also handle GAS 404

Type of GAS

Clear

Add to favourites

Type of GAS

Clear

Add to favourites

Add products to your 'favourites' list and request a no-obligation quote

Product code: N/A Air conditioning, Astrabus, SPIN, Air conditioning stations

Features

(*) suitable for mobile refrigeration recharge in vers. MULTIGAS

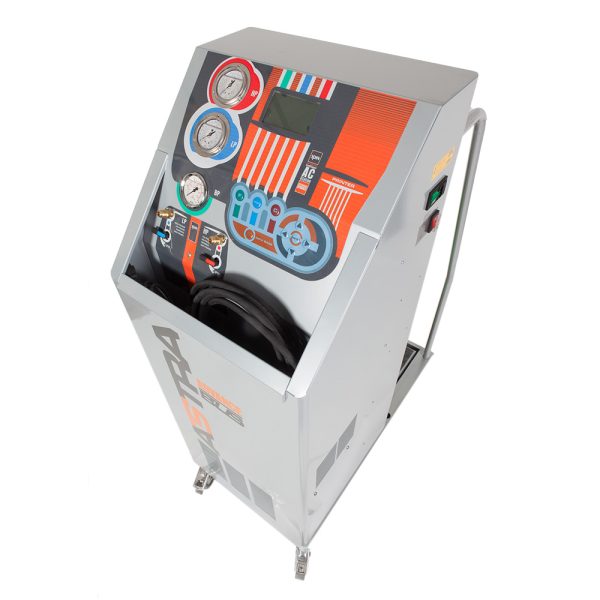

4.3" icon-based graphic display (A)
User-modifiable database (cars, trucks, agricultural and construction machinery) (B)
Personal database (100 positions) (C)
Software compliant with European Regulation (EC) No. 842/2006
Data transfer to external PC
Tank capacity: 40 kg
Cylinder pressure gauge
Scheduled filling of inner cylinder
AP/BP multiscale pressure gauges (for MULTIGAS version: R134a, R22, R404, R407) (D)

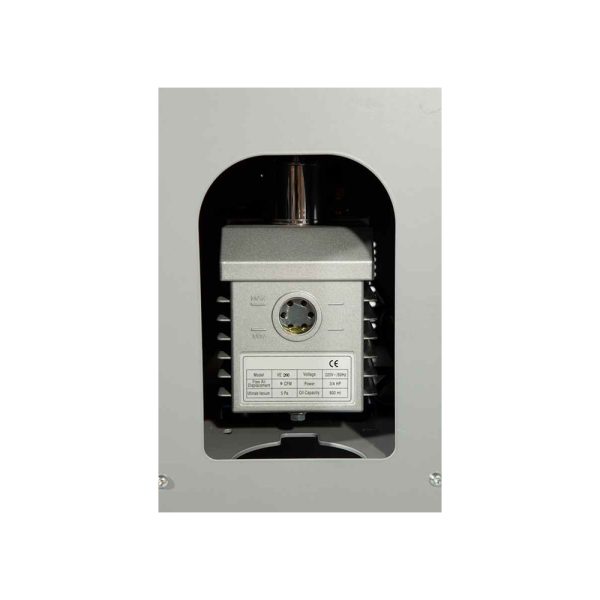

260 l/min vacuum pump (E)
Heater

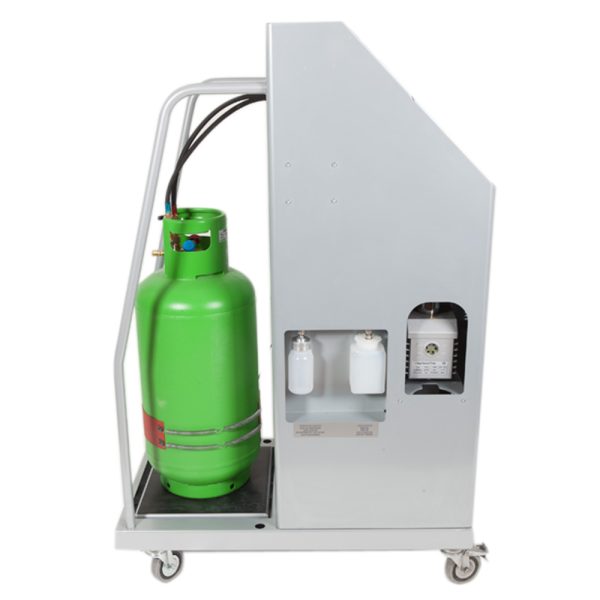

Removable 40 kg external tank with automatic heater (F)
Reinforced pump for fast automatic filling (15 l/min) on request (G)
Tubes 3/8 SAE L=3000 mm
Pipe length setting (H)
Automatic Recovery
Automatic oil drain
Programmable vacuum
Automatic gas charging
Manual exhaust of non-condensable gases
Programmable vacuum test (in mbar)
Final testing with nitrogen
Pressure test kit with nitrogen kit - code 01.000.326 on request
Ability to operate in manual or automatic mode (J)
High-capacity hermetic compressor (displacement 27 cc, 1000 gr/min)
Automatic internal cleaning
Printer on request (L)
Multilingual software (M)
INFO page for transaction summary
Software update with USB (N)
10 storable users
Dimensions: 510 x 900 x 1350 mm
Weight: 200 kg

Technical Data

Tank capacity	40 Kg
Vacuum pump	260 l/min
Compressor capacity	1000 g/min
Oil/additive injection	standard with solenoid valve
Printer	by request
MULTIGAS version	for gases R134a / R22 / R404 / R407
