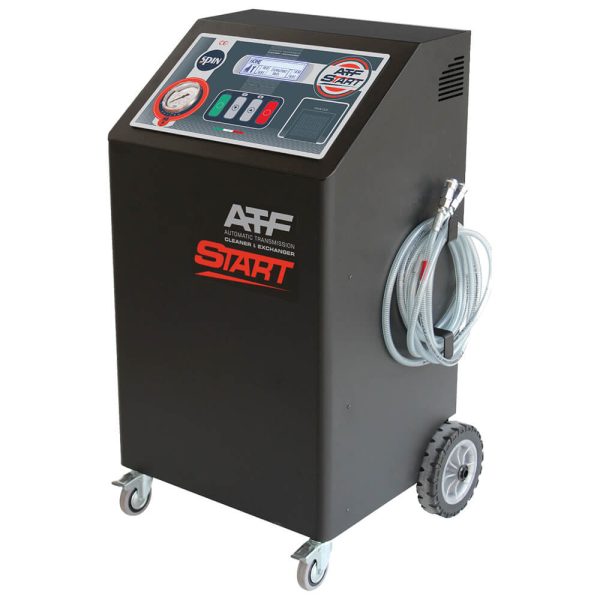

ATF Start SW

Apparatus for flushing and changing oil in automatic gearboxes,
with integrated oil flow reversal system

Details that make a difference

Multilingual icon-based software that is easy to understand

Database available with SmartPack online package (12 months incl.)

Integrated oil direction pipe reverser

Double reusable sintered filter with magnet

Possibility of semi-automatic or manual operation

Fitting and pipe kit for European and Asian cars included

Product code: 02.023.60 ATF automatic parts washer, SPIN

Features

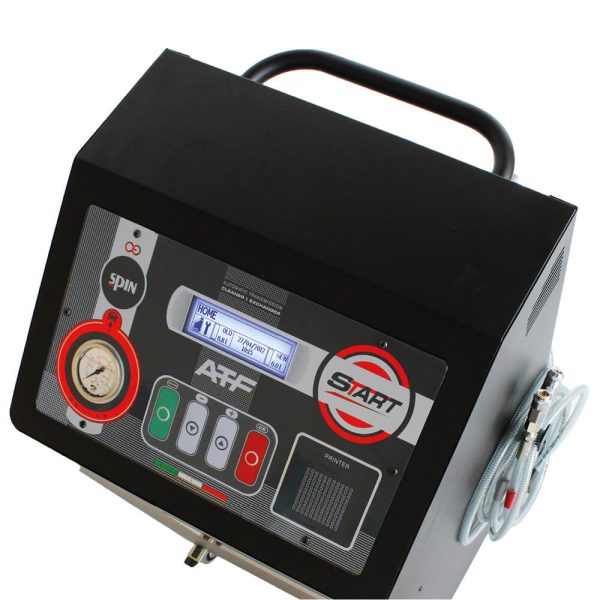

240 x 64 mm graphic display (A)
Control keyboard with only 4 keys (A)
Easy-to-understand icon-based software (A)
Return pressure measurement (A)
Intuitive software that adapts to different workshop operating modes
Multilingual software (B)
Selection specific oil weight (Kg/lt) (C)
No. 2 electronic scales
n.1 pump, 220V50Hz (110V60Hz on request)
Oil temperature measurement
Possibility of manual or fully automatic operation (D)
Overpressure protection with 'automatic recirculation' function at start and end of charge (E)
Automatic pipe length compensation (F)
Possibility of software updates (G)
Manual additive injection (H)
Automatic pipe reversal (I)
Transparent hoses for oil flow control (J)

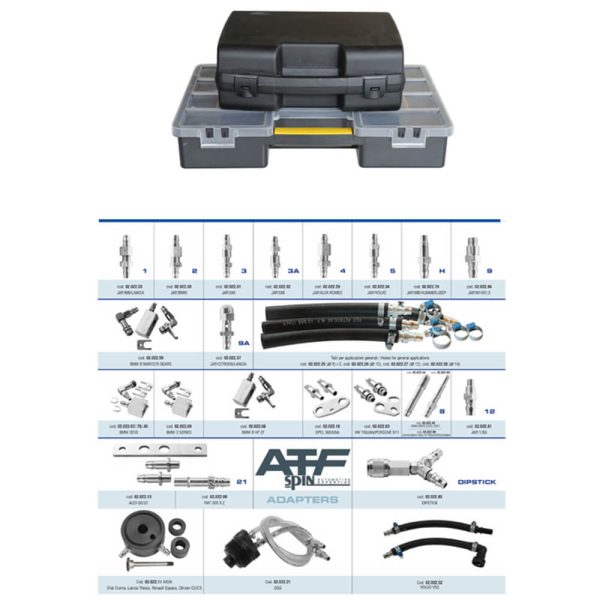

Fitting box and pipes European and Asian cars (K)

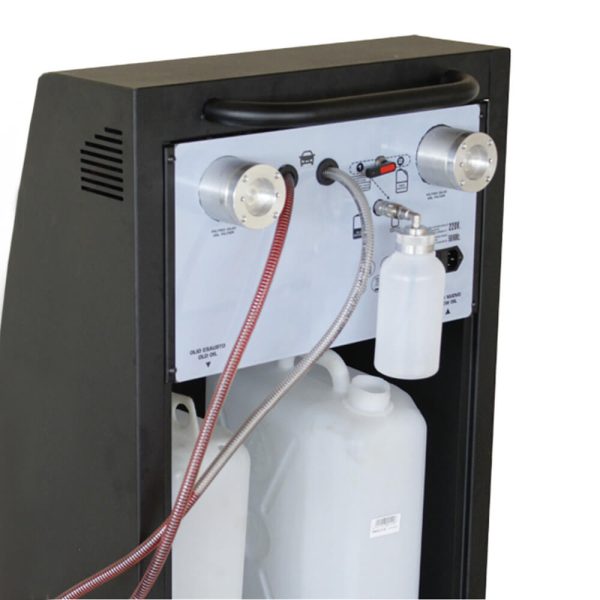

Removable 20-litre new/used oil canisters (L)
2 sintered filters with magnet (reusable) (M)
Provision for printer (supplied on request) (N)
SmartPack: password for free access to the online database for 12 months (O)
