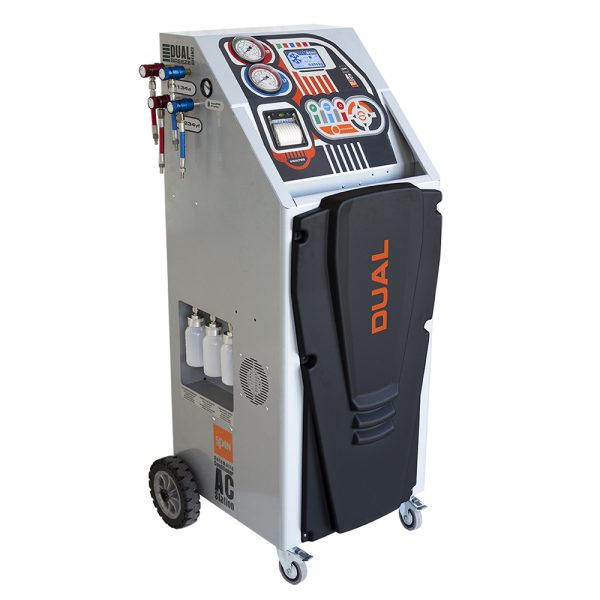

Breeze Advance DUAL Printer

Fully automatic bi-gas A/C station, R134a and R1234yf,
for cars, trucks and agricultural machinery

Details that make a difference

Double gas, with double tank of 10.5 kg each and double scales

Oil injection/additive, standard/hybrid, 3+1 with scale

Integrated database with the possibility of updating via USB

Automatic station system flushing at each gas change

Standard and hybrid oil management with automatic tube flushing

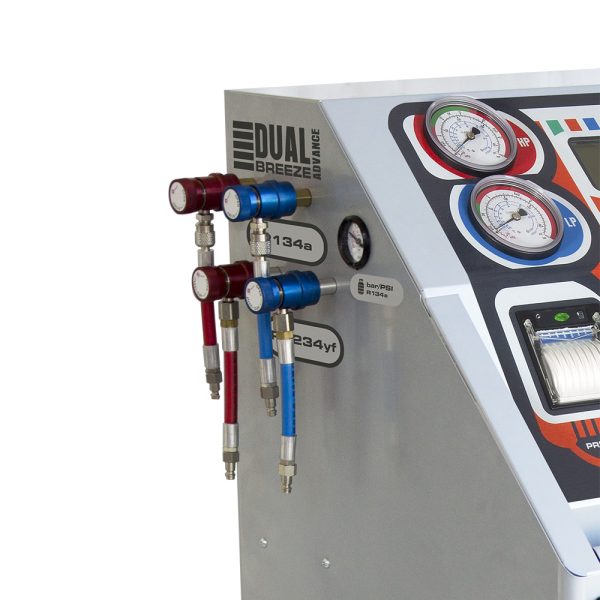

Gas quick couplings: n.2 x R134a + n.2 x R1234yf

Product code: 01.001.43 Air conditioning, Breeze Line, SPIN, Air conditioning stations

Features

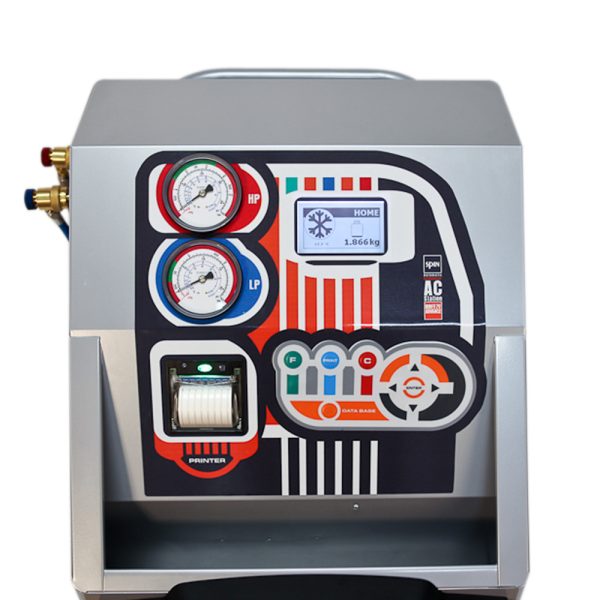

Graphic display (A)
Easy charging in all temperature conditions thanks to the BST system (by SPIN)
Integrated database (cars, trucks, agricultural machinery) with update possibility (B)

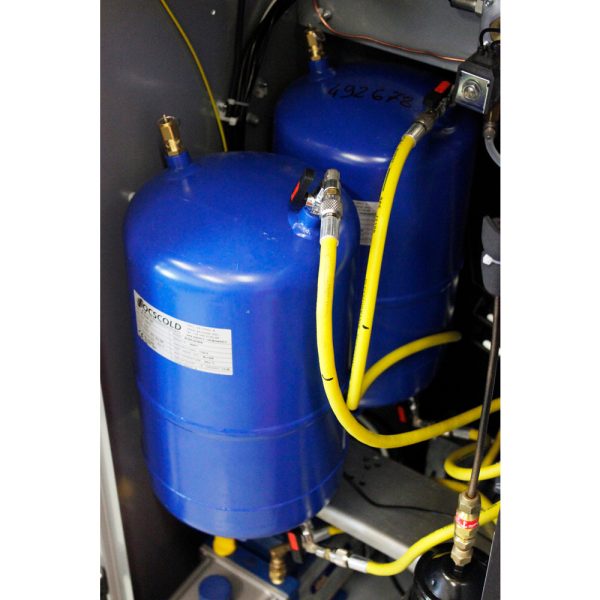

Double 10.5 kg tank with 2 scales (C)
Pipe length setting (D)
Standard printer (E)
Automatic flushing of the station system at each gas change (time adjustable by the user)
Automatic leakage test at switch-on
A/C system flushing kit with flooding - code 01.000.96 on request (F)
Recirculating A/C system flushing kit type AUDI/VW - code 01.000.139 on request (G)
Pressure test kit with nitrogen/hydrogen kit - code 01.000.326 on request (H)
Operator Management (I)
Refrigerant analyser R1234yf + R134a according to SAE and VDA standards integrated - code 01.000.263 on request (L)
Standard and hybrid oil management with automatic tube flushing (M)

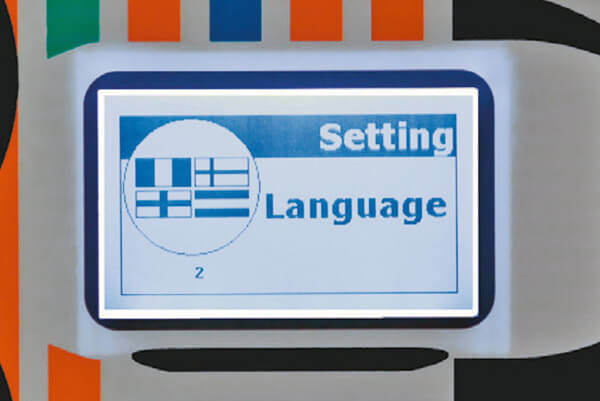

Multilingual software (N)

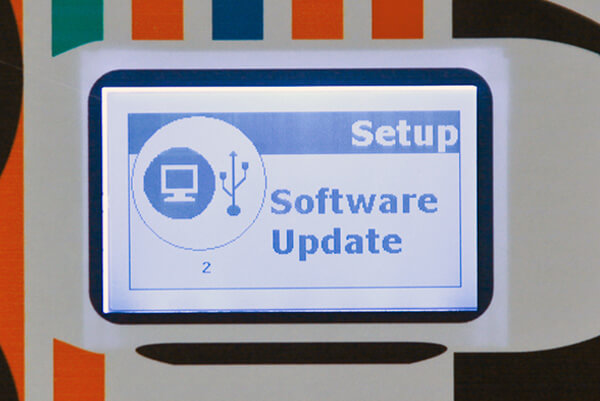

Downloading data from USB port (O)
Balance block
WiFi module for data transmission/reception - code 01.000.328 on request*.

(*) to be ordered at the same time as the A/C station

Technical Data

Tank capacity	2 x 10.5 kg
Vacuum pump	100 l/min
Compressor capacity	400 g/min
Standard/hybrid oil/additive injection with scale	3+1
4 quick-release couplings	2 x R134a / 2 x R1234yf
Printer	standard
