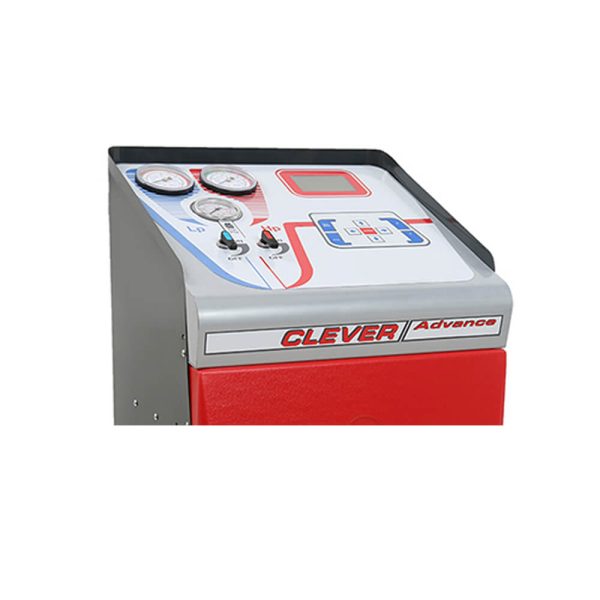

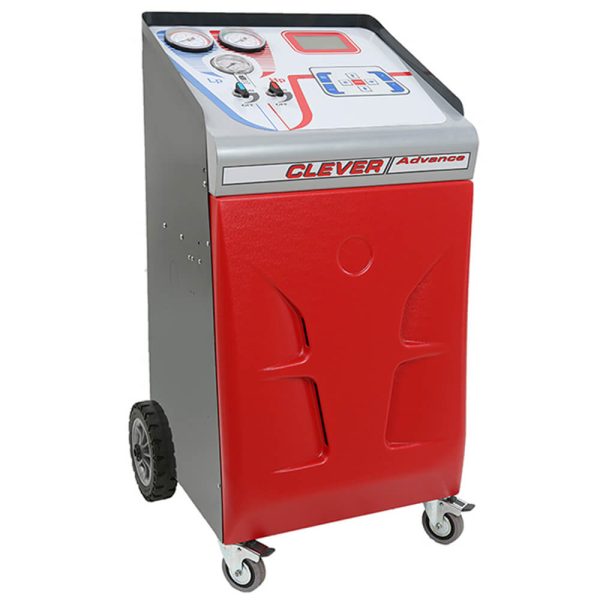

CLEVER Advance BASIC

A/C gas filling station, R134a and R1234yf, fully automatic
for cars, trucks and agricultural machinery

Details that make a difference

Easy charging in all temperature conditions thanks to the BST by SPIN system

Integrated database with updateability

Standard/additive oil injection and timed hybrid oil (2+1 injectors)

Pipe length setting

Downloading data from USB port

Multilingual software

Type of GAS

Clear

Type of GAS

Clear

Product code: N/A Air conditioning, Clever Line, SPIN, Air conditioning stations

Features

Graphic display (A)
Integrated database (cars, trucks, agricultural machinery) with update possibility (B)
Easy charging in all temperature conditions thanks to the BST system (by SPIN)
Standard/additive and hybrid oil injection (Multi-Oil System by SPIN), timed (2+1 injectors)
Pipe length setting (C)
Printer on request (D)
A/C system flushing kit with flooding - code 01.000.96 on request (E)
Recirculating A/C system flushing kit type AUDI/VW - code 01.000.139 (F)
Pressure leak test with nitrogen/hydrogen kit - code 01.000.326 (G)
Operator Management (H)
Multilingual software (I)
Downloading data from USB port (L)
HFO refrigerant analyser kit according to SAE and VDA standard integrated - code 01.000.205 on request
WiFi module for data transmission/reception - code 01.000.328 on request*.
Balance block

(*) to be ordered at the same time as the A/C station

Technical Data

Display	graph
Tank capacity	12.5 kg
Vacuum pump	72 l/min
Compressor capacity	300 g/min
Standard oil/additive injection	timed (2+1 injectors)
Oil injection/hybrid additive	standard
Printer	by request

Accessories on request

Product sheet

SPIN catalogue
