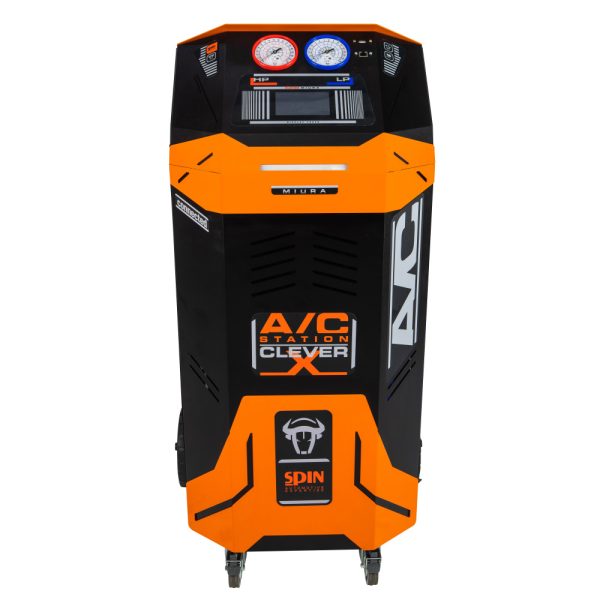

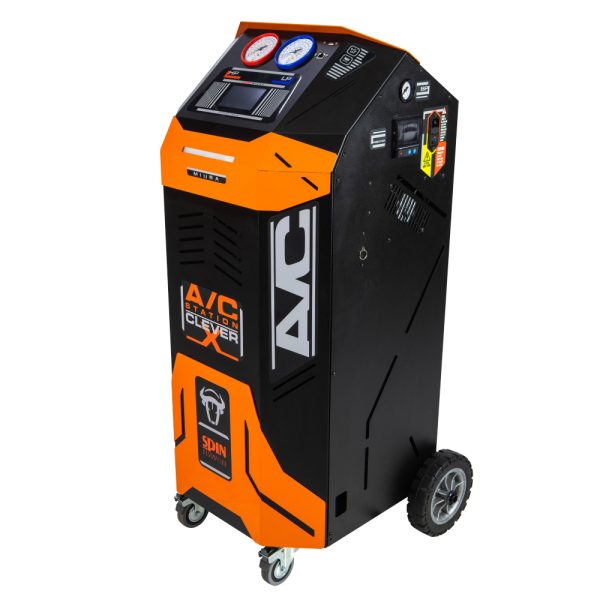

Clever MIURA X Printer

Fully automatic A/C station, available for R134a gas and R1234yf gas, for cars, trucks and agricultural machinery

Details that make a difference

5" touch-screen display for clear, fast and intuitive navigation

Functions automatically managed by the software, for maximum working precision

Oil injection/additive, standard/hybrid, 3+1 with scale

Automatic station flushing at every oil change

Remote control via smartphone thanks to free downloadable app

High machine robustness, with durable components for low maintenance

Type of GAS

Clear

Type of GAS

Clear

Product code: N/A Air conditioning, Clever Line, SPIN, Air conditioning stations

Features

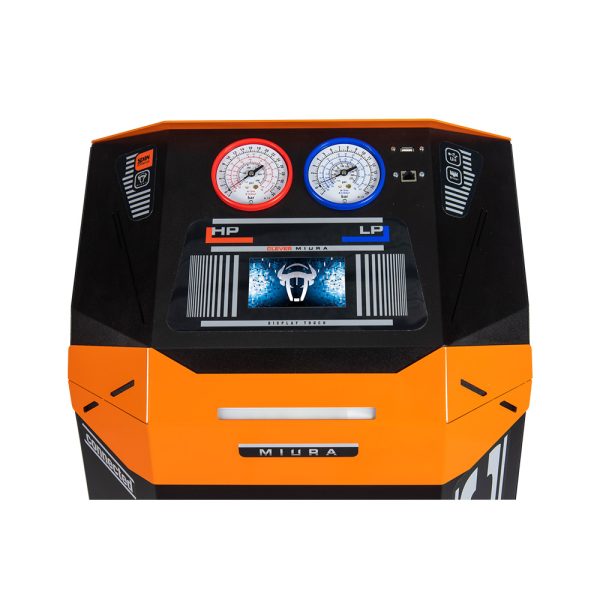

5" touch screen display with intuitive icons (A)
Automatic AP/BP valves
WSC function (Winter-Summer-Compensation): possibility of correcting the quantity of gas loaded, operating with the +/- keys and pressure control (B)
Maximum recovery efficiency thanks to the standard Multipass function (C)
Easy charging in all temperature conditions thanks to the BST system
Integrated database updatable with USB stick (from USB port on panel) (D)
Standard, electric and hybrid oil/additive injectors (3+1 injectors) (E)
Automatic internal circuit flushing at every oil change (PAG-POE)
Integrated WiFi for remote control from smartphones
Remote control from smartphones with the free app downloadable from Play Store on Android and App Store on iPhone/iPad (F)
Ethernet output and cable for connection to PC for interconnection
Protocol 4.0 as standard
Phase and alarm lights
Vehicle compressor protection during low pressure charging (CSP)
Automatic recovery from pipes at end of pressure test
A/C system flushing kit with flooding - code 01.000.96 on request
Recirculating A/C system flushing kit type AUDI/VW - code 01.000.139 on request
Pressure test kit with nitrogen kit - code 01.000.326 on request
Refrigerant analyser with SAE (% gas protocol) and VDA (ok/not ok) - code 01.000.216 on request

‣

‣

Technical Data

Touch Screen Display	5"
Tank capacity	18 kg
Vacuum pump	170 l/min
Compressor capacity	400 g/min
AP/BP valves	automatic
Oil injection/additive standard/hybrid	3+1 injectors with scales
Printer	standard

Accessories on request

Vehicle compressor protection during low pressure charging (CSP)
Automatic recovery from pipes at end of pressure test
A/C system flushing kit with flooding - code 01.000.96 on request
Recirculating A/C system flushing kit type AUDI/VW - code 01.000.139 on request
Pressure test kit with nitrogen kit - code 01.000.326 on request
Refrigerant analyser with SAE (% gas protocol) and VDA (ok/not ok) - code 01.000.216 on request
