Motorcycle/scooter lift

Lifting bridge for motorbikes and scooters with foot-operated hydraulic pump

Product code: N.A. Categories Motorbike workshop equipment, MARCOTOOLS

Max. flow rate

Clear

Add to favourites

Add products to your 'favourites' list and request a no-obligation quote

marcotools-05.085.04L-ponte-sollevatore-02

marcotools-05.085.04L-ponte-sollevatore-00

marcotools-05.085.04C-ponte-sollevatore-02

marcotools-05.085.04C-ponte-sollevatore-00

main features

Motorbike and scooter lift with foot-operated hydraulic pump. This motorbike lift allows all maintenance operations on motorbikes to be carried out and is the ideal tool for replacing brake pads, coupons, changing sprockets or changing oil.

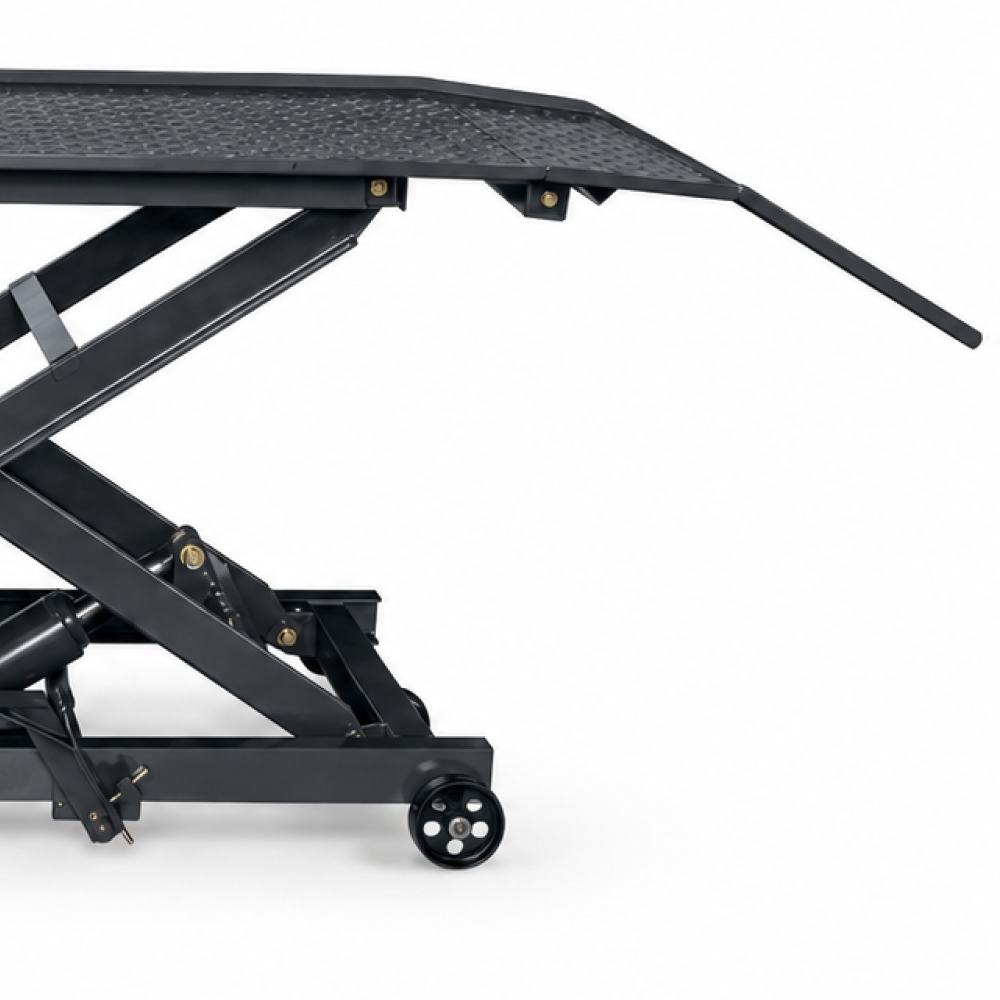

The lift is equipped with a foot pedal to lower/raise the motorbike via hydraulic drive with pantograph lifting technology.

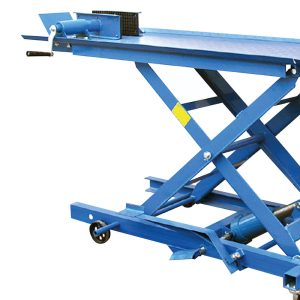

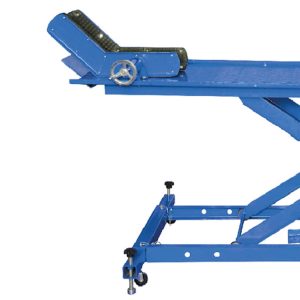

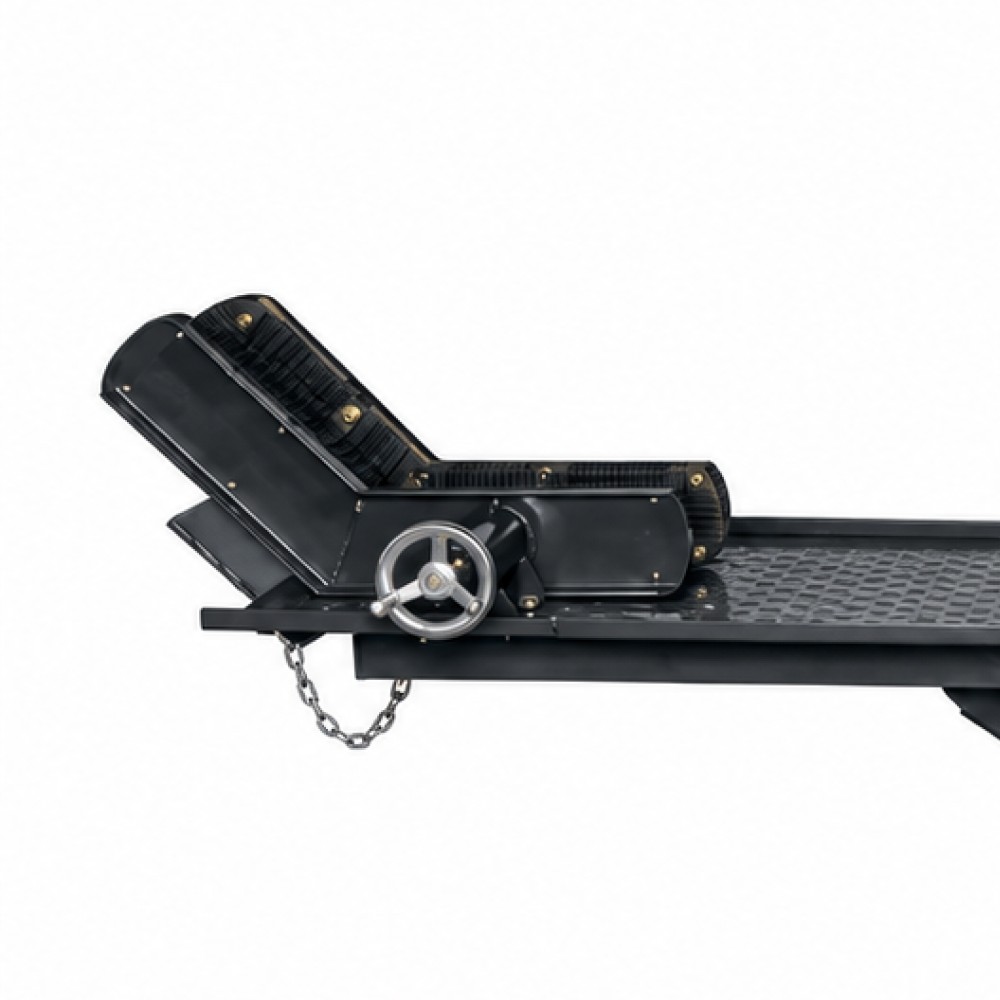

It features a robust steel construction with a non-slip knurled platform and a clamp with jaws for secure positioning of the vehicle. The equipment also includes a ramp. The lift is equipped with 2 fixed and 2 swivel wheels for easy movement within the garage or workshop.

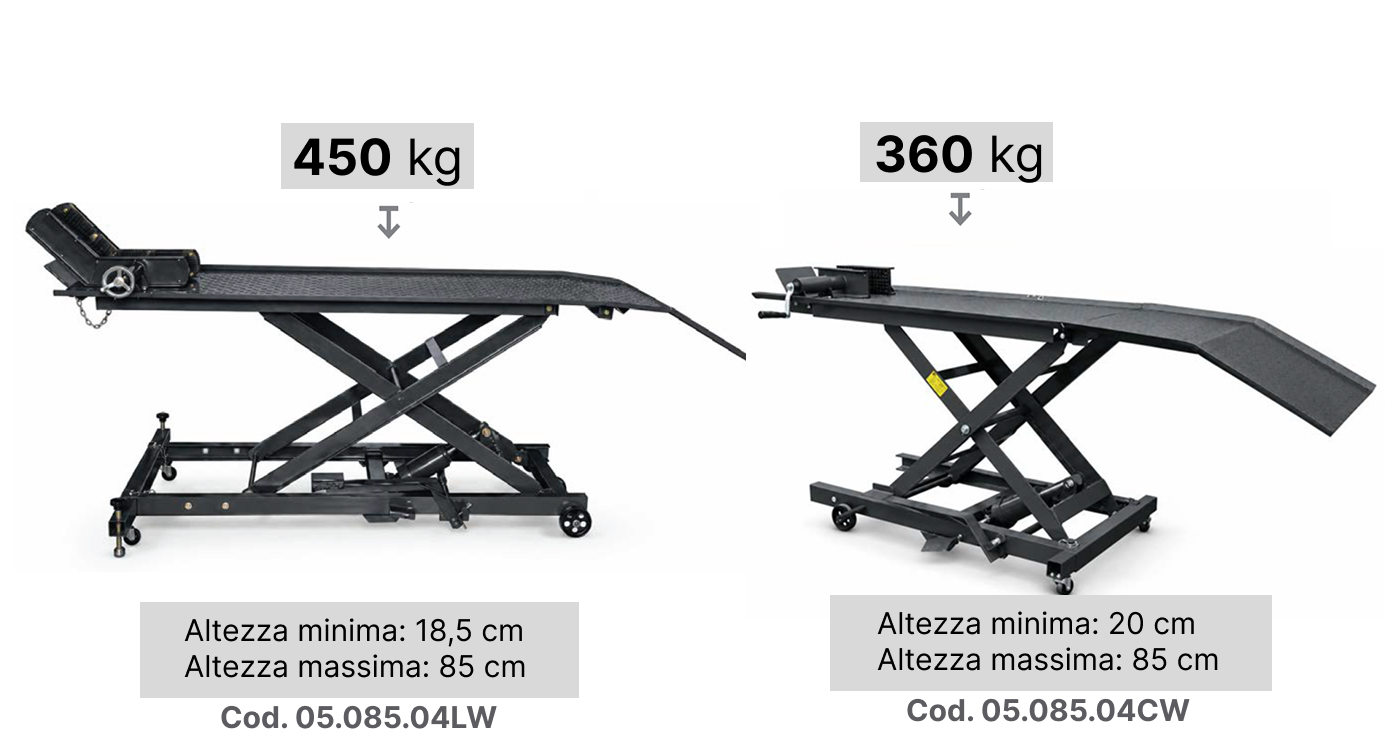

Available in two different versions:

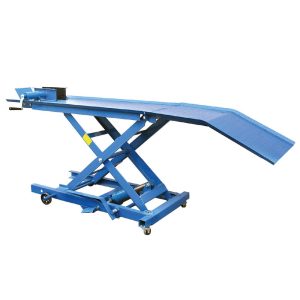

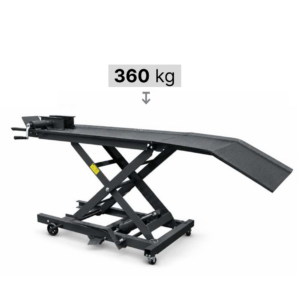

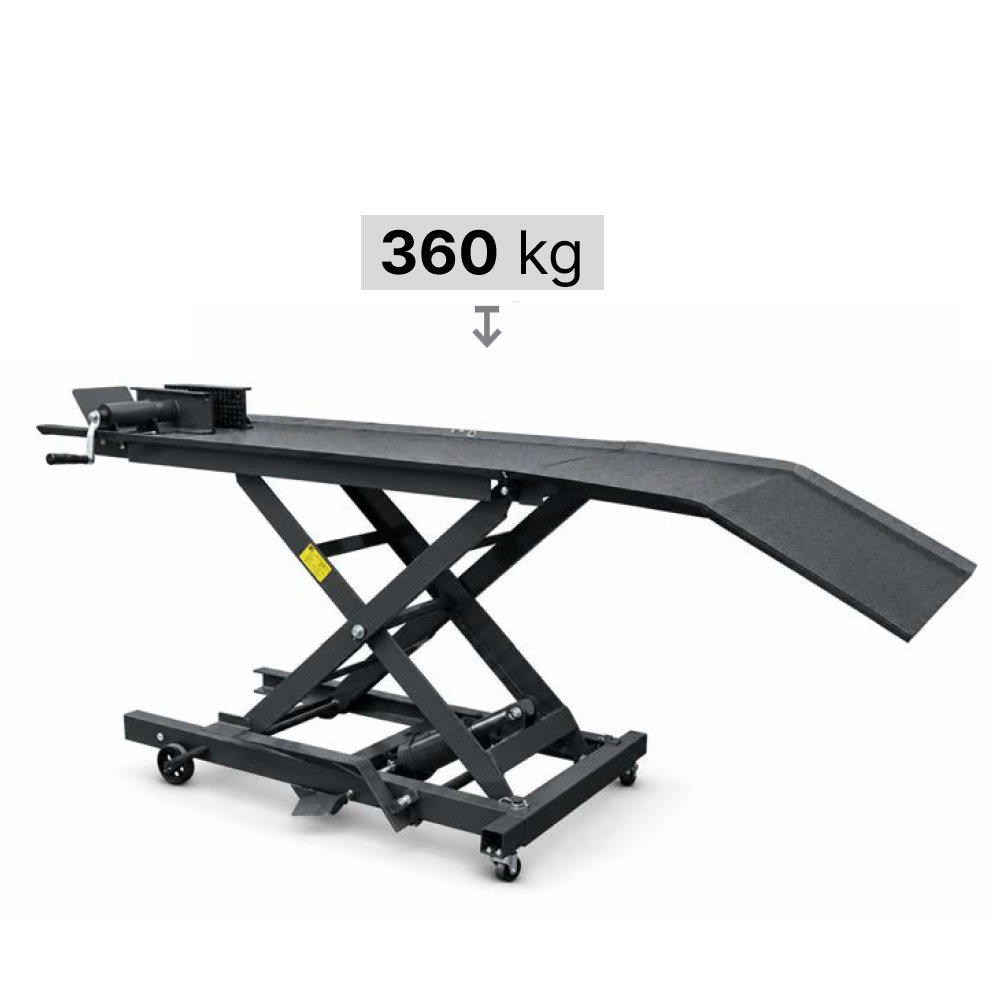

Load capacity 360 kg - code 05.085.04C

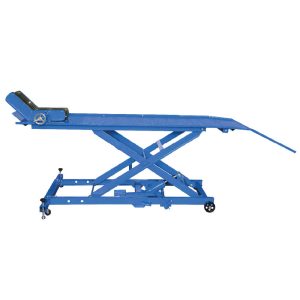

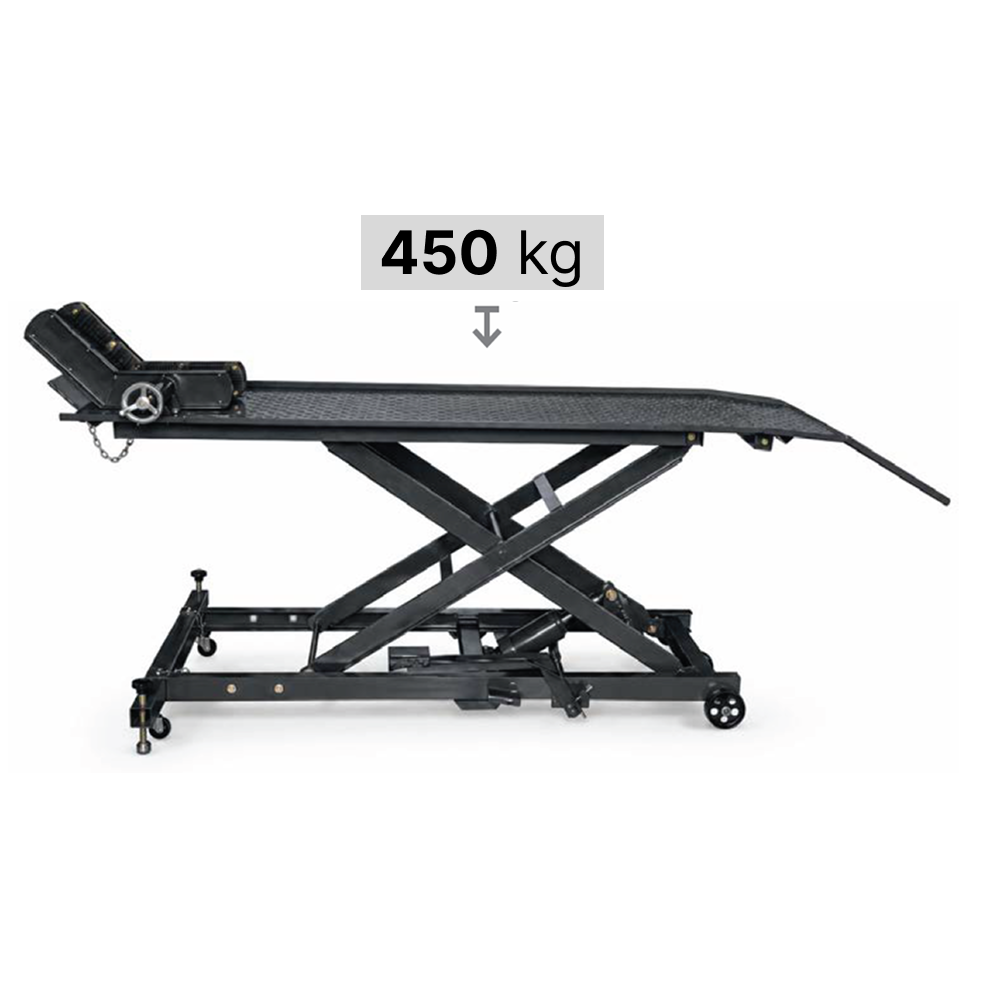

Load capacity 450 kg - code 05.085.04L

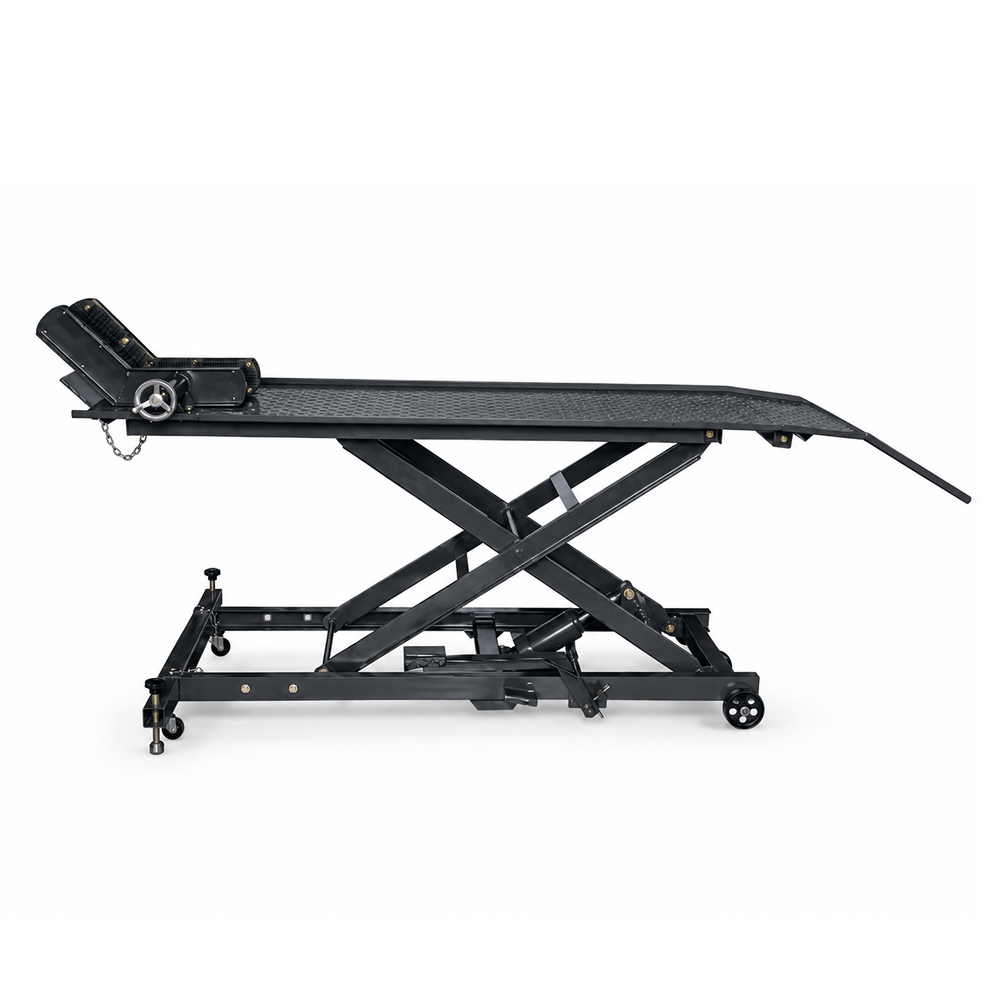

	Technical specifications - code 05.085.04L: Load capacity: 450 kg Min. height: 18.5 cm Max. height: 85 cm Colour: blue RAL 5015 Floor measurement with side ramp: 266 x 65 cm Top size: 220 x 65 cm Side ramp measurement: 60 x 65 cm Wooden packaging, dim.: 224 x 70 x 21 cm Gross weight: 167.8 kg Net weight: 145.5 kg
	Technical specifications - code 05.085.04C: Load capacity: 360 kg Min. height: 20 cm Max. height: 85 cm Colour: blue RAL 5015 Top size with side ramp: 220 x 49 cm Top size: 135 x 49 cm Side ramp measurement: 85 x 49 cm Wooden packaging, dim.: 150 x 80 x 40 cm Gross weight: 120 kg Net weight: 107 kg
