Air-hydraulic press

30-ton pneumatic-hydraulic press for machine shops,
ideal for cars, motorbikes, agricultural machinery, industrial maintenance

Product code: 03.031.32LT Categories ,
Add to favourites
info Add products to your 'favourites' list and request a no-obligation quote

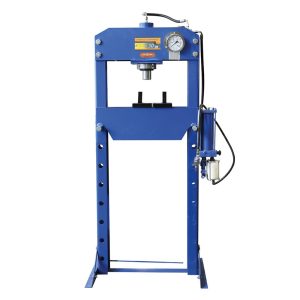

03.031.32LT-1
C - Air-hydraulic pump and manual control with lever
B - Movable piston, pressure gauge embedded in the machine body
A - Pair of steel plates with "V" notch

main features

  • Maximum pressure: 8 bar
  • Capacity: 30 ton
  • Piston stroke: 160 mm
  • Max. feed 6 mm per stroke
  • Lowering speed <30 mm/s
  • Min. working distance: 130 mm
  • Max. working distance: 820 mm
  • Air-hydraulic pump, also manually operated
  • Moving piston
  • Dimensions of assembled press: 590 x 770 x 1760 mm
  • Packaging dimensions: 1750 x 380 x 270 mm (press disassembled)
  • Net/gross weight: 150/160 kg



The details that make the difference:



Accessories on request:

  • code 03.031.33 - Kit consisting of:
      • set of no. 6 punches in C40 steel, for bearing/bushing extraction
      • plate, for dismantling bearings/bushings
      • extractor flanges, no.2 pairs: Ø 35-50 mm / Ø 50-75 mm
  • code 03.031.36 - Foot control for press

Product sheet

Download

MARCOTOOLS catalogue

Download
