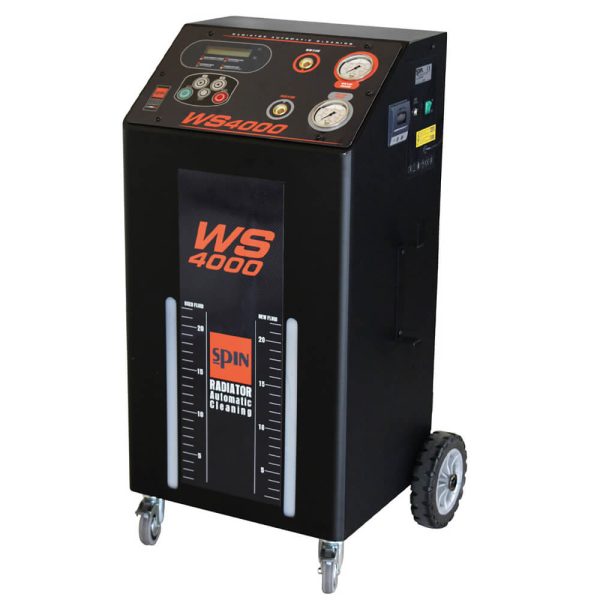

WS4000 PRINTER

Executable work steps:

• Air purging from WS 4000 (specific programme)
• Flushing of the engine cooling circuit (after insertion of the specific additive) via the special injector; the flushing is timed but the duration can be modified by the operator
• Change of coolant with return to the inner tank, display of coolant status in the two flow meters on the panel
• Emptying the internal tank with a specific programme
• Automatic bypass of the pump during flushing but with the possibility of the pump being activated by the operator
• The following data can be printed out (vehicle number plate, VIN, date/time, km)

Technical Specifications

• Multilingual software-assisted connection and washing procedure (A) Available languages: IT/EN/HR/CZ/DK/D/F/PL/PT/RO/RU/SK/SL/ES/SW/HU
• Injector for inserting the specific additive (B)
• Displaying the state of the liquid in the two flow meters on the panel (C)
• Printer (vehicle number plate, VIN, date/time, km) (D)
• Power supply: 220V 50 Hz
• Emptying the internal tank with a specific programme (E)
• Internal 3000W automatic liquid heater
• N.2 inlet and outlet pressure gauges
• N.2 20-litre canisters
• Maintenance alarm (filter cartridge replacement)

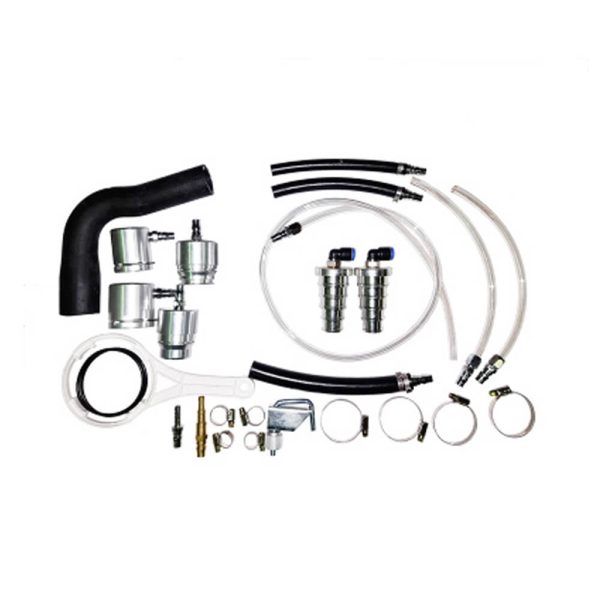

• Kit of accessories and adapters for series connection to the vehicle's cooling system (F)
• The machine is supplied with no.1 'ZEUS' tank (decarbonising washing liquid) + no.1 'URAN' tank (lubricant with anti-corrosion protection)
